Tadano Loader Crane

TM-ZX1505

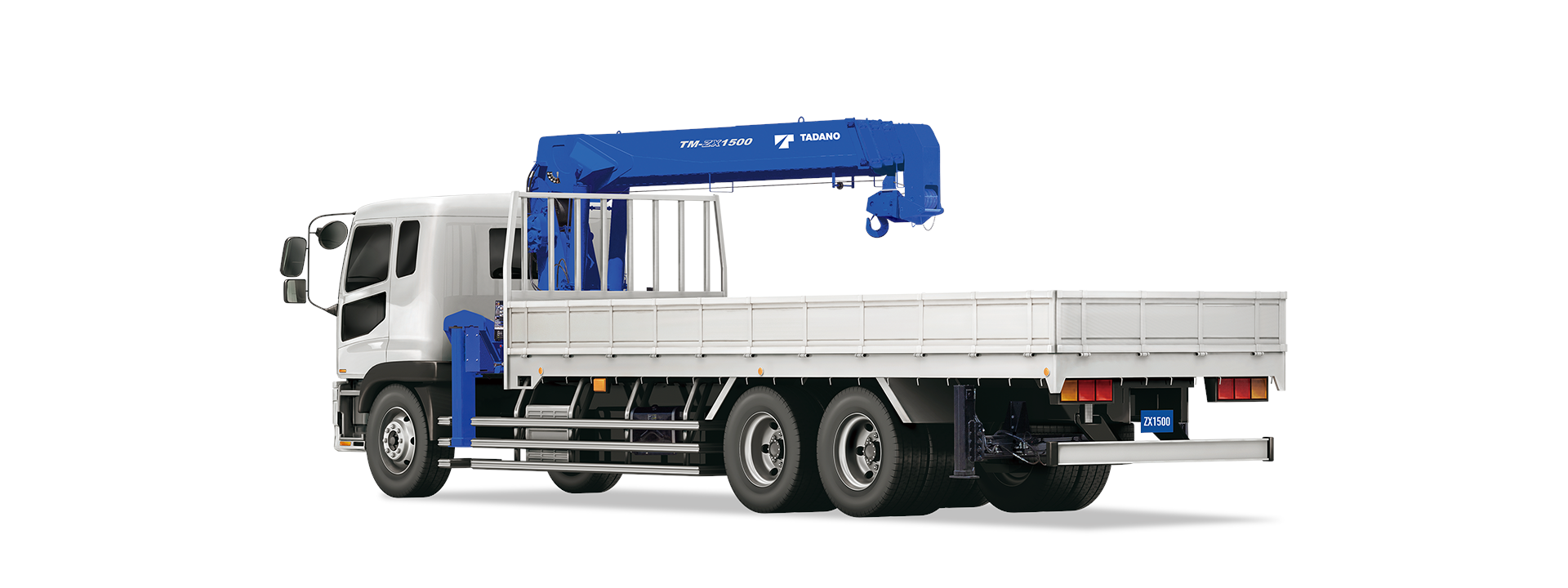

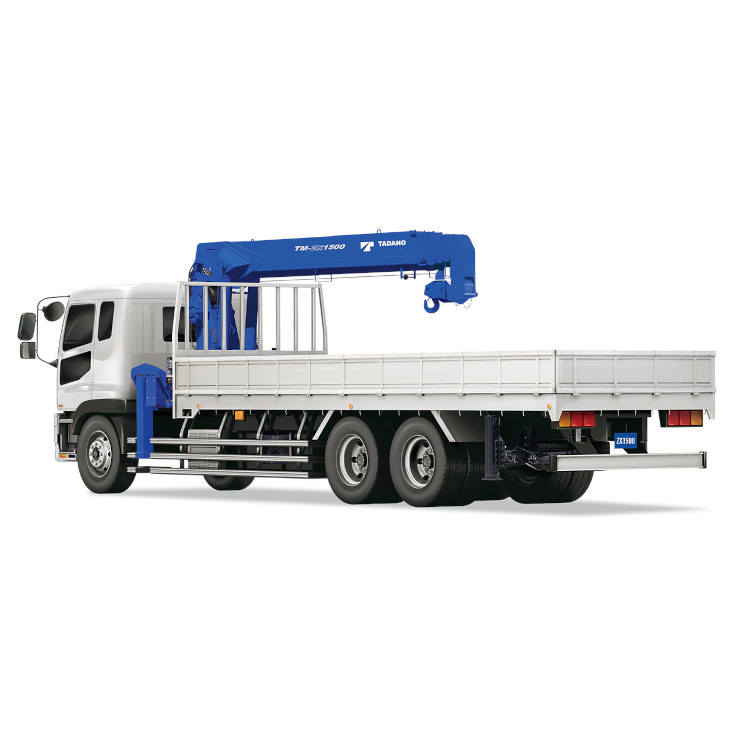

The Tadano TM-ZX1505 is a heavy-lift truck-mounted loader crane equipped with a five-stage telescopic boom, delivering a maximum lifting capacity of 15 tonnes at a 2.0-metre radius. It provides an extended boom reach of up to 18.5 metres and a hook height of approximately 20 metres, while integrated safety technologies such as the Automatic Moment Limiter (AML) and Tadano’s “Safety Eyes” system continuously monitor load and stability. This makes it well suited to demanding logistics operations and large-scale construction projects.
Tadano Loader Crane

TM-ZX1505

The Tadano TM-ZX1505 is a heavy-lift truck-mounted loader crane equipped with a five-stage telescopic boom, delivering a maximum lifting capacity of 15 tonnes at a 2.0-metre radius. It provides an extended boom reach of up to 18.5 metres and a hook height of approximately 20 metres, while integrated safety technologies such as the Automatic Moment Limiter (AML) and Tadano’s “Safety Eyes” system continuously monitor load and stability. This makes it well suited to demanding logistics operations and large-scale construction projects.​
TM-ZX1505

Crane Specification

TM-ZX1505

Crane Specification

Max. Lifting Capacity

15t x 2.0m

Boom Lenth (Retracted - Extended)

5.3m - 18.5m

Slewing

360o full circle slewing

Crane Mass

3.5t Approx

AC 3.060-1

General Data for Suitable Trucks

AC 3.055-1

Carrier Specification

Gross Vehicle Weight

25t min

Chassis Front Axle Weight

3t min

Wheel Base

5500mm min

Width For Crane Mounting

Approx 1350mm min

Frame Width Range (Inside and Outside)

Approx 520mm - 1010mm

Frame Height (Ground to chassis frame top)

Approx 840mm - 1195mm

Chassis Frame Section Modulus

585 cubic cm
