MMS Mobile Cranes

Tadano Loader Crane

TM-ZT825

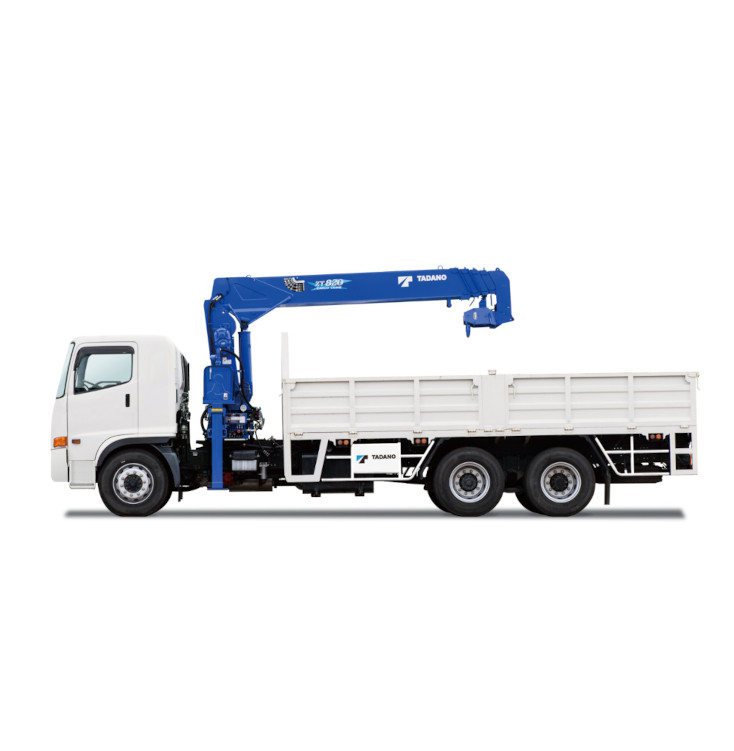

The Tadano TM-ZT825 is a hydraulically operated truck loader crane manufactured from 2013 to 2021, built to handle demanding lifting tasks with a maximum capacity of 8.2 tonnes at a 1.8-metre working radius. It is equipped with a five-stage telescopic boom that extends to 15.92 metres and achieves a hook height of up to 17.8 metres. Designed with space efficiency in mind, the crane offers continuous 360-degree rotation for smooth, unrestricted operation.
Tadano Loader Crane

TM-ZT825

The Tadano TM-ZT825 is a hydraulically operated truck loader crane manufactured from 2013 to 2021, built to handle demanding lifting tasks with a maximum capacity of 8.2 tonnes at a 1.8-metre working radius. It is equipped with a five-stage telescopic boom that extends to 15.92 metres and achieves a hook height of up to 17.8 metres. Designed with space efficiency in mind, the crane offers continuous 360-degree rotation for smooth, unrestricted operation.​
TM-ZT825

Crane Specification

TM-ZT825

Crane Specification

Max. Lifting Capacity

8.2t x 1.8m

Boom Lenth (Retracted - Extended)

4.40m - 15.92m

Slewing

360o full circle slewing

Crane Mass

2.88t Approx

TM-ZX1205

General Data for Suitable Trucks

AC 3.055-1

Carrier Specification

Gross Vehicle Weight

25t min

Chassis Front Axle Weight

3t min

Wheel Base

5000mm min

Width For Crane Mounting

Approx 900mm min

Frame Width Range (Inside and Outside)

Approx 610mm - 910mm

Frame Height (Ground to chassis frame top)

Approx 1280mm max
