Oil & Steel Aerial Work Platform

SCORPION 2313

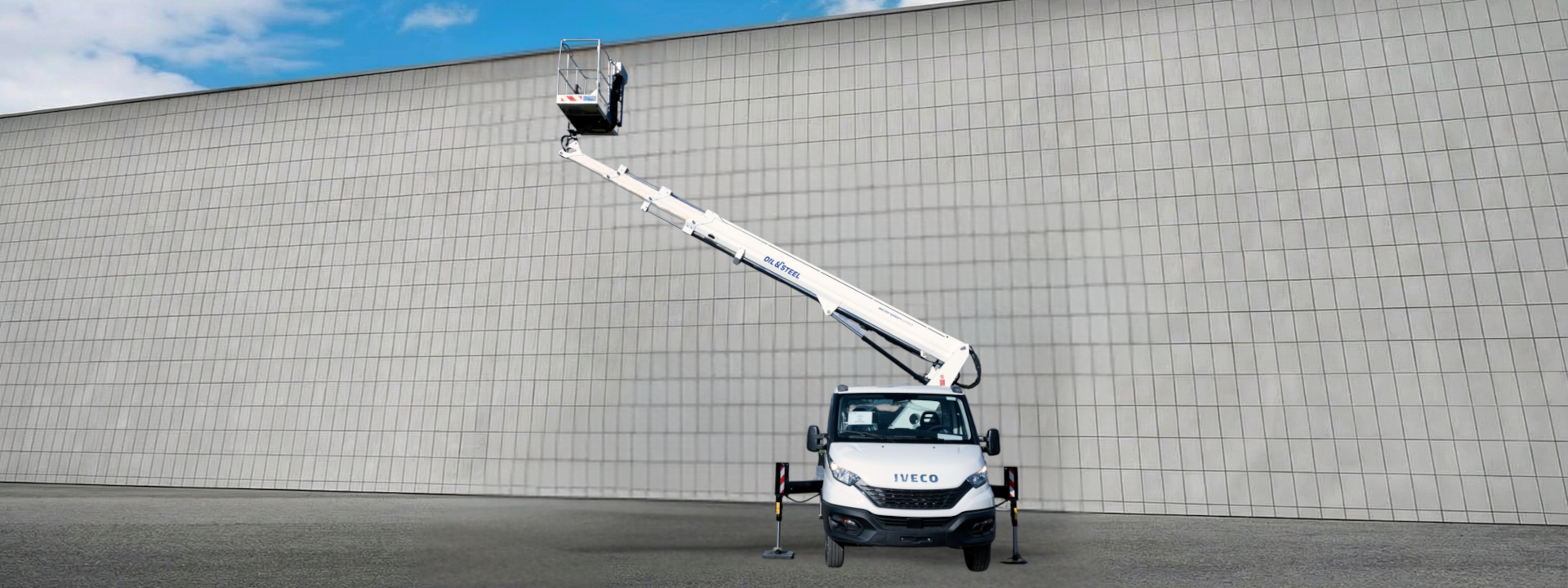

The Oil & Steel Scorpion 2313 is a professional telescopic truck-mounted access platform engineered for demanding work at height. It delivers a maximum working height of 22.6 metres and a horizontal reach ranging between 12.2 and 12.8 metres. Typically installed on a 3.5-tonne IVECO or Nissan Cabstar chassis, it can be driven using a standard Class B passenger vehicle licence, making it a practical choice for a wide range of commercial applications.
Oil & Steel Aerial Work Platform

SCORPION 2313

The Oil & Steel Scorpion 2313 is a professional telescopic truck-mounted access platform engineered for demanding work at height. It delivers a maximum working height of 22.6 metres and a horizontal reach ranging between 12.2 and 12.8 metres. Typically installed on a 3.5-tonne IVECO or Nissan Cabstar chassis, it can be driven using a standard Class B passenger vehicle licence, making it a practical choice for a wide range of commercial applications.​
SCORPION 2313

AWP Specification

SCORPION 2313

AWP Specification

Max Working Height

22.6m

Basket Size

Alu 1.4 x 1.1 x 0.7 m (fibreglass optional)

Max Horizontal Outreach

12.8m

Max Load Capacity

250kg

Controls

Electro Hydraulic Aerial Part, Hydraulic Outriggers

Turret Rotation

+/-400°

Basket Rotation

+/-90° Left +/-90° Right

Machine Length

7700mm

Machine Height

2860mm

Machine Width

2200mm
