Oil & Steel Aerial Work Platform

SCORPION 18

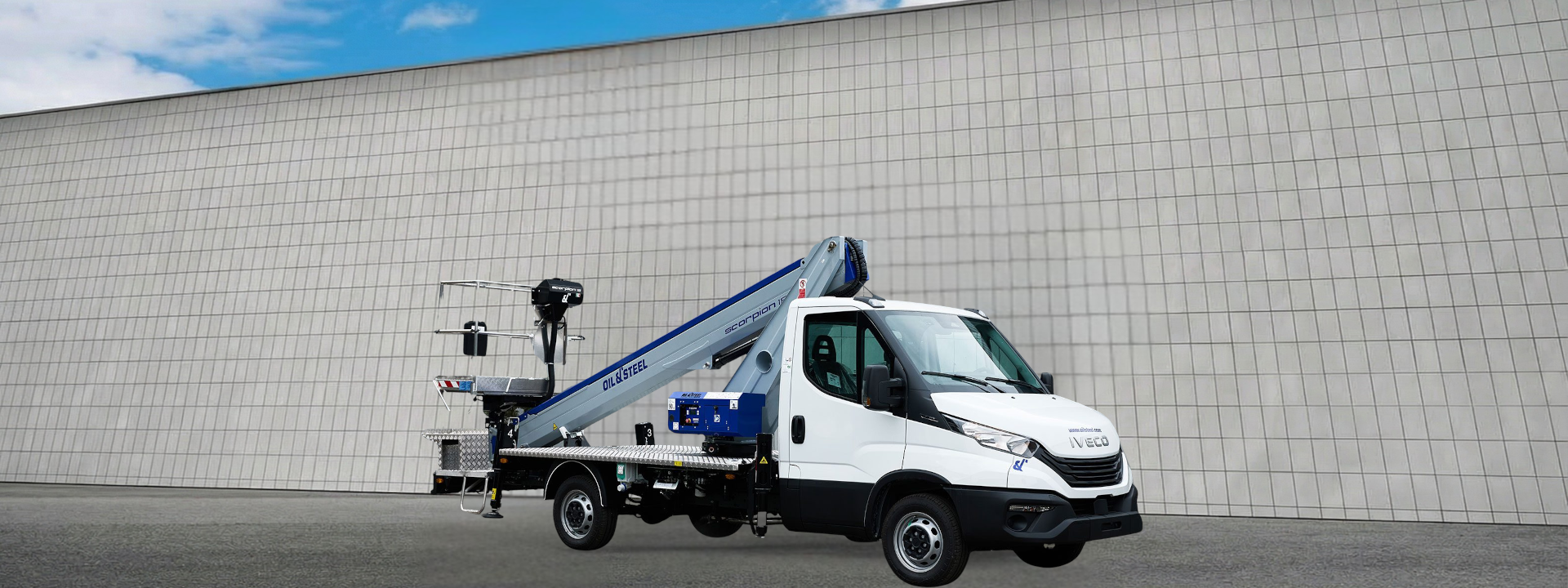

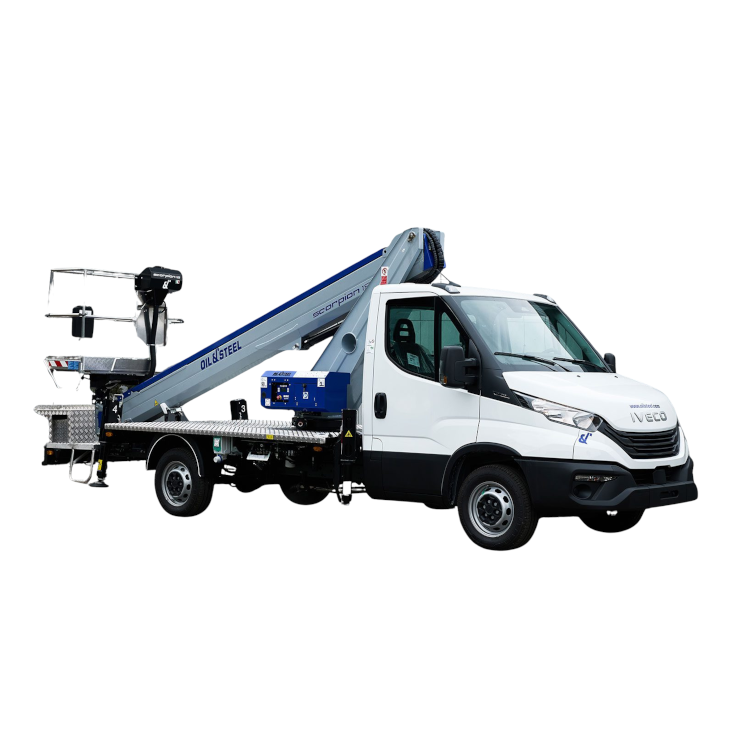

The Oil & Steel Scorpion 18, commonly referred to as the Scorpion 1812, is a lightweight truck-mounted access platform built on a 3.5-ton chassis, delivering a working height of up to 17.8 metres and a horizontal reach of approximately 12.5 metres. It supports a 300 kg platform load and is engineered for flexible use, incorporating electro-hydraulic control systems, wide-range ±400° turret rotation, and fast, efficient stabilisation. Frequently mounted on an Iveco Daily, it is well suited to maintenance work and rental fleet operations.
Oil & Steel Aerial Work Platform

SCORPION 18

The Oil & Steel Scorpion 18, commonly referred to as the Scorpion 1812, is a lightweight truck-mounted access platform built on a 3.5-ton chassis, delivering a working height of up to 17.8 metres and a horizontal reach of approximately 12.5 metres. It supports a 300 kg platform load and is engineered for flexible use, incorporating electro-hydraulic control systems, wide-range ±400° turret rotation, and fast, efficient stabilisation. Frequently mounted on an Iveco Daily, it is well suited to maintenance work and rental fleet operations.
SCORPION 18

AWP Specification

SCORPION 18

AWP Specification

Max Working Height

17.8m

Basket Size

Alu 1.4 x 1.1 x 0.7 m

Max Horizontal Outreach

12.5m

Max Load Capacity

300kg

Controls

Electro Hydraulic Aerial Part, Hydraulic Outriggers

Column Rotation

+/-400°

Basket Rotation

+/-90°

Machine Length

7350mm

Machine Height

2745mm

Machine Width

2275mm
